1.Equipped with PLC control system and safety protecting and alarm devices;
2.Constant sealing with no need of changing .Easy to operate and maintain;
3.The length of shrink film is automatically adjusted by the electric yes and control timer;
4.The added horizontal and vertical electric eyes provide options for switchover. It’s suitable for sealing thin and small products;
5.Automatically perform the scraps discharge process. Leave no mess and keep your working space tidy and clean;
6.Imported parts are adopted to ensure the machine’s stable running with high speed.
7.Imported parts are adopted to ensure the machine’s stable running with high speed.
8.The cutter adopts vertical system drive to ensure sealing lines straight and tight.
9.With the design of side sealing, the packing length of products is unlimited.
10.The sealing height can be adjusted based on the product height.
11.Widely used in all kinds of products with different sizes and shapes.
12.The machine is applicable to industries like food, gift, hardware, daily necessities, pharmacy, printing, etc.
| SEALING TYPE | L SEALING |
| POWER SUPPLY | 380V/50-60HZ/3PHASE |
| MAX PRODUCT SIZE | W≤200MM W+H≤250MM L+H≤330MM |
| MAX PACKING CAPACITY | 15-45 PACKS PER MINUTE |
| FILM TYPE | POLYETHYLENE (PE) / POF FILM |
| MAX FILM SIZE | 380 (WIDTH) X 280MM (OUTER DIAMETER) |
| POWER CONSUMPTION | 6KW |
| TUNNEL OVEN SIZE | 1200MM(L) X 300(W) X 165(H) MM |
| TUNNEL CONVEYOR SPEED | VARIABLE, CONTROLLED BY FREQUENCY CONVERTER |
| TUNNEL CONVEYOR | CHAINS WITH SILICON COATED RODS OR STEEL MESH CONVEYOR |
| WORKING HEIGHT | 780-850MM |
| AIR PRESSURE | 0.5MPA (5 BAR) |
| SEALING KNIFE | SAW TEETH CUTTING KNIFE WITH ANTI-STICK TEFLON COATS |
| OPERATION PANEL | SIEMENS COLORFUL TOUCH SCREEN, OMRON TEMPERATURE CONTROLLER |
| MACHINE MATERIAL | CARBON STEEL |
| MACHINE WEIGHT | 390KG |

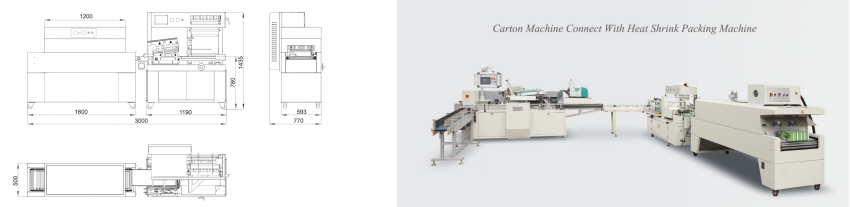

| MACHINE DIMENSIONS | 1600 X 770 X 1450MM |
