This packing machine with different feeders suitable for grain, liquid and powder. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
Share to:
Product Overview
This packing machine with different feeders suitable for grain, liquid and powder.

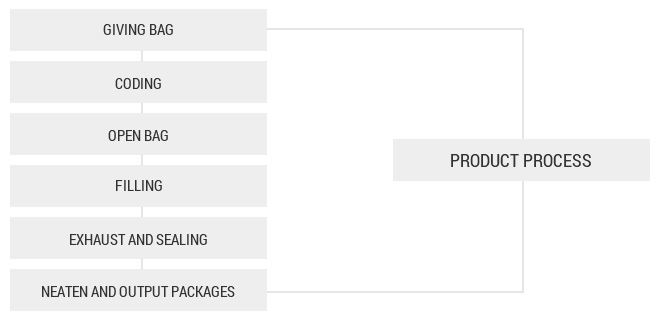

PRODUCT PROCESS:
Characteristics
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. Automatic folding-bag function: It could do folding bags automatically, and match to the next packing procedure.
5. The parts which touch with the materials is made of stainless steel.
Application
For packing powder such as milk powder, coffee powder, seasoning powder, spice powder ect.
Technical Parameter
|
Model |
RS6-300 |
RS6-250 |
RS6-200 |
|
Working position |
Six Working Positions | ||
|
Pouch material |
Laminated Film\PP\PE etc. | ||
|
Pouch pattern |
Flat Bag / Stand-up Pouch | ||
|
Pouch size |
W:200-300mm |
W:150-260mm |
W:100-210mm |
|
Speed |
8-30bag/min |
8-35bag/min |
10-50bag/min |
|
Weight |
1500KGS |
1400KGS |
1200KGS |
|
Voltage |
380V 3phase 50HZ/60HZ | ||
|
Total power |
4KW |
4KW |
3KW |
|
Compress air |
Each 0.6 cubic meters ( provided by the user) | ||
