Rotary Blister Packing Machine
This blister packing machine adopts flatbed mold positive pressure forming and roller mold sealing. This machine is suitable for blister packaging of capsules and tablets.
Share to:
Product Overview
This blister packing machine adopts flatbed mold positive pressure forming and roller mold sealing. This machine is suitable for blister packaging of capsules and tablets.
Characteristics
  1. Easy to change the mold. The mold adopt guide groove, can push along the guide groove and tighten by two screws, without any tools.
  2. The equipment transmission area in the back and operating area in the front. easy operate and to clean.
  3. The main motor mounted in the rear fuselage, a large space, and easy maintenance.
  4. By independent servo motor traction, traction stroke set is very simple. Can easy set the pulling length on the touch screen, No need to adjust the mechanical structure
Application

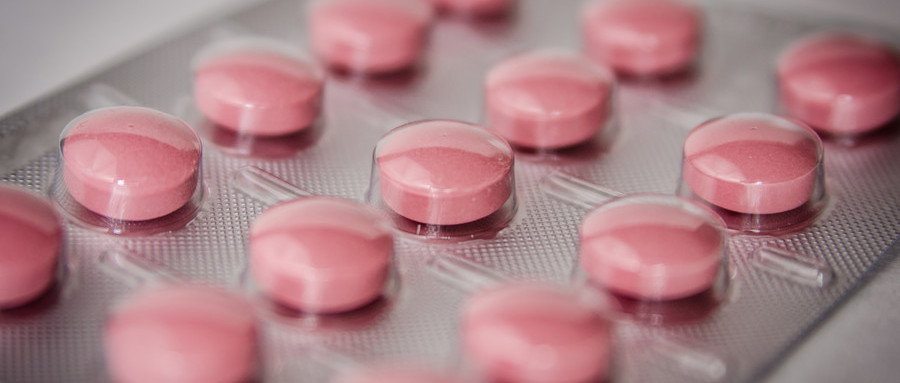

Samples:

Technical Parameter

Punch Frequency

60-150 /min

capacity

around 3600 blister/min(for 57*80)

Max forming area

200×270(mm2)

Forming depth

10 mm (max)

stroke

punch:20-100mm forming:80-270

Packing materal

PVC reel:0.15-0.5×260 mm

PTP Alu foil:0.02-0.035×260 mm

Reel Aperture:70-76 mm

Total Power

16KW

Main motor

Y90L-4 1.5KW

voltage

380/200V 50HZ

Compressed air

>0.2m3 /min 0.4-0.6MPA

Mold cooling

water:60L/H

Noise

75dB(A)

Overall Dimension

4100×850×1760 mm(L×W×H)

Weight

3000Kg
