Automatic Aluminum Foil Rolls Cartoning Machine
Application:This machine is suitable for aluminum roll, preservative film, self-seal bag which is packed in the carton.
Share to:
Product Overview
The Machine is successfully researched by our company through accumulation the advantage of the similar products from abroad,design with our own new innovations characteristic of pneumatic-photo-electric-mechanic integration with high performance.products ,which make the preservative.film,foil roll automatic boxing packing in stead of manual,which raise working efficiency,achieve fast packing demands,then always keep sterilization when higher speed running.The machine suitable for each different specification preservative film,foil roll and relate similar for each different specification preservative film,foil roll and relate similar products boxing packing,machine automatic foollowing the material feeding,boxing opening and box package process(the hot glue sealing device for option);the machine adopts PLC photo electricity each parts,stopping automatic when have trouble during running and appear the trouble reason. Machine can be used single also can be connected with foil roll machine and make the production line.

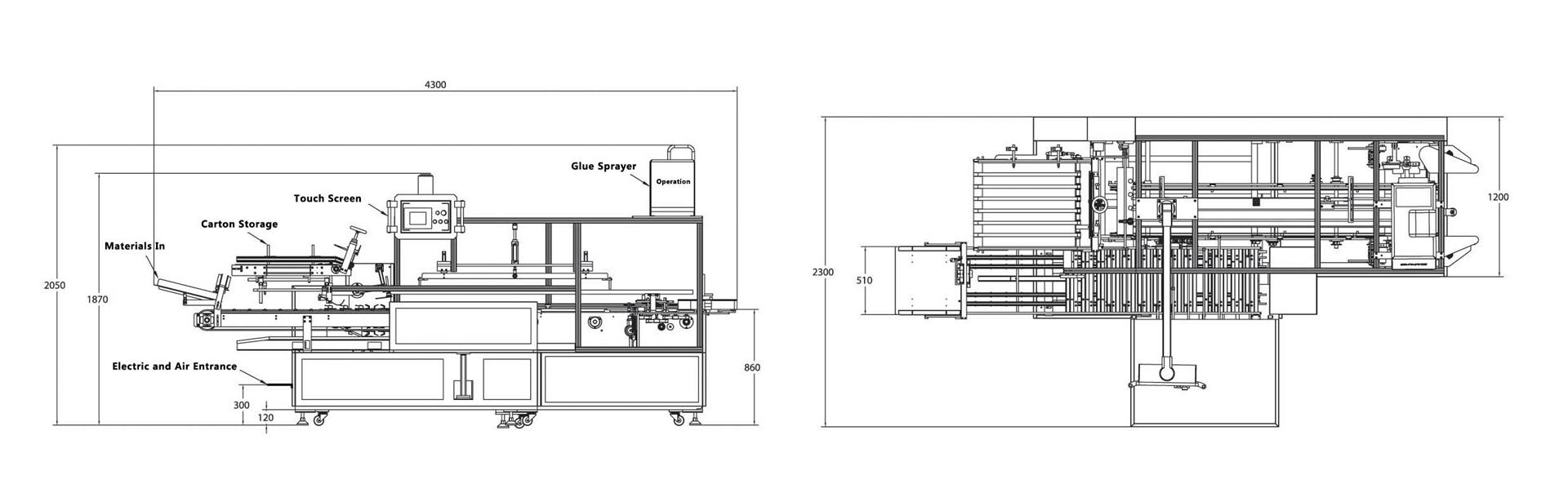

Instruction diagram:
Characteristics
1. Adopts Automatic Material Conveying, Box opening, feeding, Batch No. printing, Glue spraying, Box sealing, with compact reasonable structure, easy for operation.
2. Adopts Servo Motor/Sept Motor, PLC Touch Screen Programmer system, human-Machine display, easy for operate, and design with higher mechanization and hommization.
3. Adopts fully automatic arrange conveying structure, easy connect with automatic line producing, make reduce the labor cost. 4n Adopts Automatic Photocell Eye Tracking system for empty box, and save the pack material cost.
5. With widely packing range, easy adjustable for different specification requirements.
6. With Automatic stopping for the miss box feeding, also has the Overload Protection.
Application
Application: This machine is suitable for foil roll, preservative film, self-seal bag which is packed in the carton.
Technical Parameter
Item | Specification |
Paper Requirement | 300-450g/m² |
Max. Carton Specification | L(110-500)*W(20-80)*H(15-60)mm |
Packing Speed | 60-100 box/min |
Hot Melt Machine Power | 4.8KW |
Motor Power | 2.2KW |
Toeal Power | 8.5KW |
Power Supply | AC380V 50Hz |
Air Supply | Pressure 0.5-0.8Mpa |
Air Consumption 140-180L/min | |
Outline Dimensions | Main machine L4300*W2300*H2000mm |
Conveying size L1900*W300*H800mm | |
Machine Weight | 2,000Kg |
