Automatic Cartoning Machine
This machine is applicable for packing different size of the blister or similar products, it can automatically finish the folding of leaflet, carton opening, feeding, number printing, and carton closing or glue sealing.
Share to:
Product Overview
This machine is applicable for packing different size of the blister or similar products, it can automatically finish the folding of leaflet, carton opening, feeding, number printing, and carton closing or glue sealing.

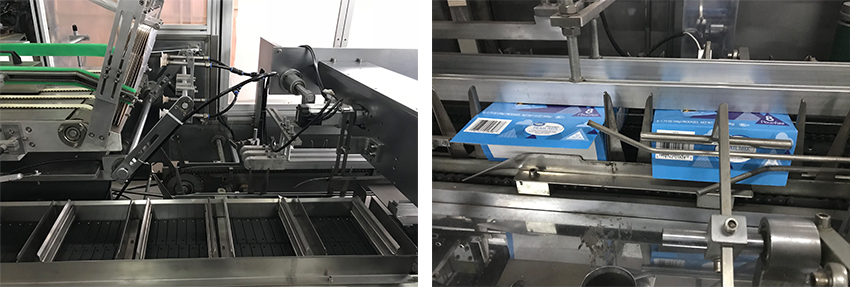

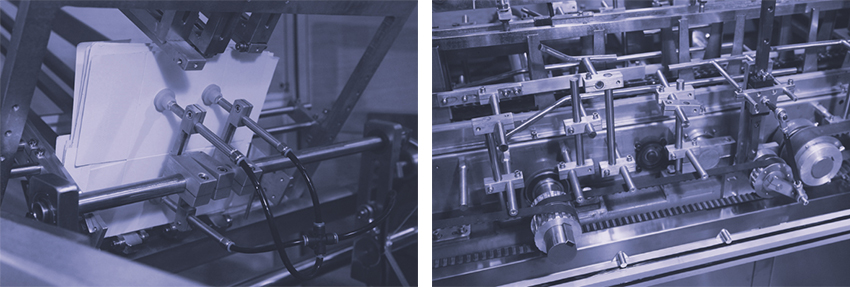

Detail image:
Characteristics
1. Machine packing speed is controlled by frequency conversion.
2. Machine with HMI operating system to automatically display packing speed and quality.
3. The machine error will be displayed in the screen and maintenance methods.
4. Manual and automatic mode for selection.
5. Batch numbers printing on the box and also have the function of printing the serial number.
6. Machine with automatic detection system for rejection the unqualified products.
Application
Samples:

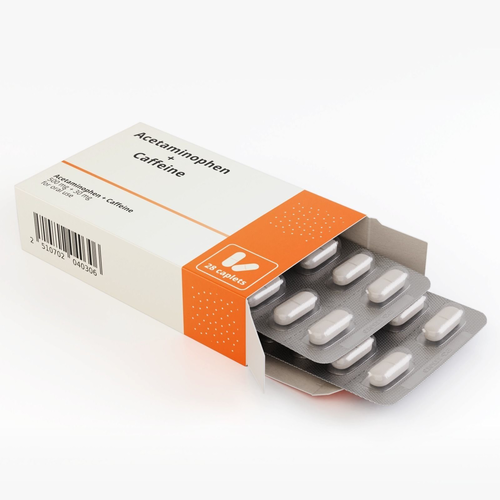

Tablet or Capsule Blister Package
Plastic or Aluminum Tube: (Ointment, Cream, Toothpaste)

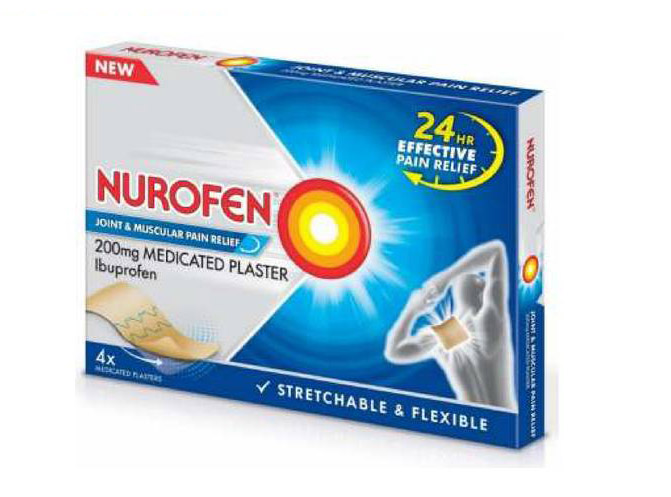

Medicated PLASTER:
Video:
Technical Parameter
Item | Technical Data | |
Packing speed | 40-100 carton/min | |
Carton | Quality requirement | 250-350g/㎡ |
Dimension range (L x W x H) | (60-200)mm X (20-85)mm X (14-50)mm | |
Leaflet | Paper Requirements | 60-80g/㎡ |
Dimension range (L x W x H) | (80-240)mm X (90-170)mm | |
Compressed air | Working Pressure | 0.5-0.8mpa |
Consumption | 120-160 L/Min | |
Power Supply | 220V 50Hz | |
Main Motor Power | 1.5kw | |
Relative Temperature | <70% | |
Overall Dimension(L x W x H) | 3100x1100x1700mm | |
G.W. | 1500kg |
