Automatic Cartoning Machine For Tissue Paper
Application：It is suitable for automatic boxing of facial tissues, napkins, square tissues, pocket tissues, sanitary, towels, pads, etc.
Share to:
Product Overview

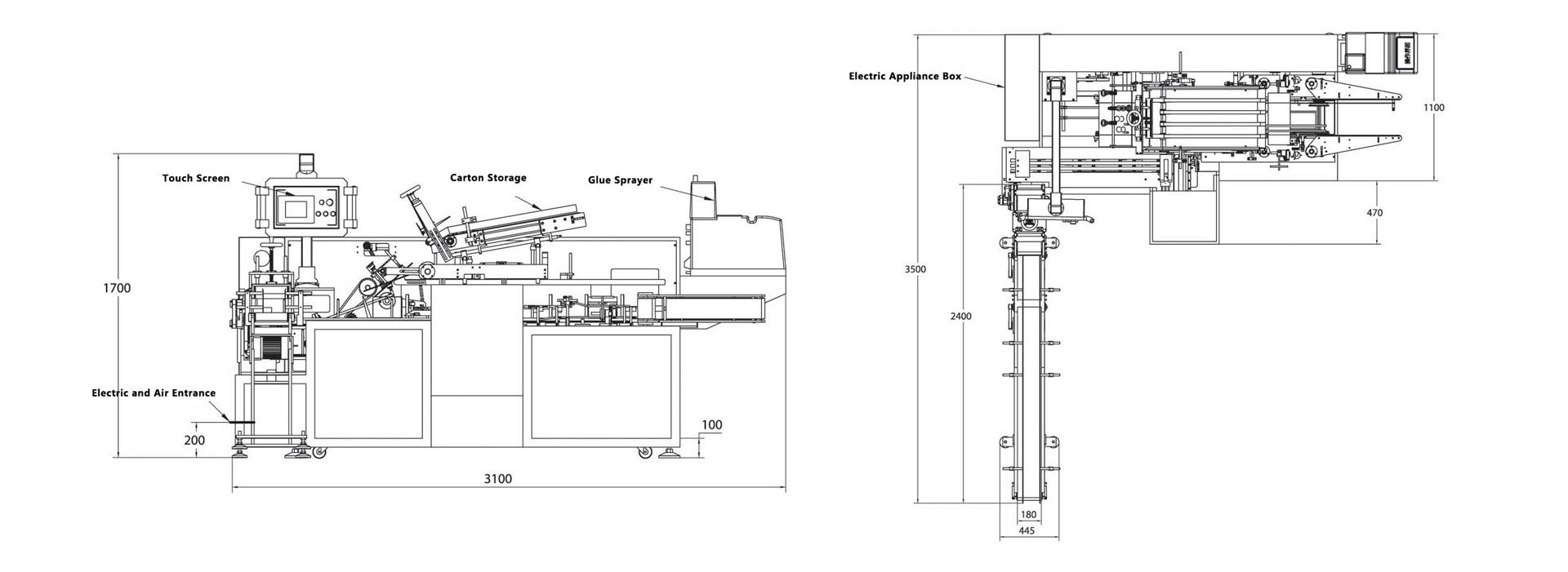

Instruction diagram:

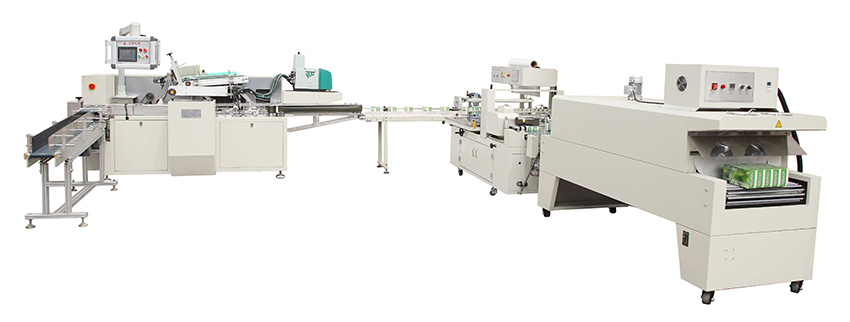

The carton is connected to the shrinking machine:
Characteristics
1. Adopts Automatic Material Conveying, 8ox opening, Feeding, 8atch No. printing. Glue spraying, Box sealing, with compact reasonable stnjcture, easy for operation.
2. Adopts Servo Motor/Sept Motor, PLC Touch Screen Programmer system, human-Machine display, easy for operate, and design with higher mechanization and hommization.
3. Adopts fully automatic arrange conveying structure, easy connect with automatic line producing, make reduce the labor cost. 4% Adopts Automatic Photocell Eye Tracking system for empty box, and save the pack material cost.
5. With widely packing range, easy adjustable for different specification requirements.
6. Change the different size just adjust the machine no need chaoge the mould.
7. With Automatic stopping for the miss box feeding, also has the Overload Protection.
Application
It is suitable for automatic boxing of facial tissues, napkins, square tissues, pocket tissues, sanitary, towels, pads, etc.
Technical Parameter
| Item | Specification |
| Paper requirement | 300-450g/m² |
| Max. carton specification | L(100-240)*W(40-160)*H(20-125)mm |
| Packing speed | 30-80 box/min |
| Hot melt machine power | 4.8KW |
| Motor power | 1.5KW |
| Toeal power | 7.3KW |
| Power supply | Ac380V 50Hz |
| Air supply | Pressure 0.5-0.8Mpa |
| Air Consumption 140-180L/min | |
| Outline dimensions | Main machine L3200*W1600*H1800mm |
| Conveying size L2400*W400*H1200mm | |
| Machine weight | 1800Kg |
